Blower balancing machine manufacturer from China Taian zhongheng equipment Co. ltd.

Payment Terms:	T/T
Place of Origin:	Shandong, China (Mainland)

Product Detail

Means of Transport: by sea

Delivery Date: within seven days

Packing: packed in plywood box

universal joint drive balancing machine,drive shaft balancing machine,dynamic balancing machine,rotor balancing machine,horizontal balancing machine

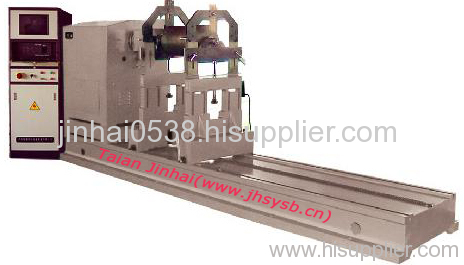

Blower balancing machine

MODEL	Max. mass of workpiece (kg)	Max.diameter of workpiece (mm)	Distance between two bearing suppo (mm)	Max.rotor Diameter (mm)	Balanncing speed min (r/mm)	min. achievableresidualun balance(g.mm/kg):	unbvalance reduction ratio(%):	Drive power (kw)
YYW-160	5-160	φ950	60-1420	φ10-180	325/650/1300	≤1	≥90	0.85/1.5
YYW-300(A)	10-300	φ1200	60-1700	φ20-180	325/650/1300 (A300-2500 Neutral speed regulating)	≤1	≥90	2..2/3.3 A5.5
YYW-500(A)	20-500	φ1500	70-1600	φ15-240	325/650/1300 (A300-2500 Neutral speed regulating)	≤1	≥90	3/4.5 A7.5
YYW-1000(A)	20-1000	φ1500	70-2300	φ15-240	325/650/1300 (A300-2500 Neutral speed regulating)	≤1	≥90	5/7.5 A7.5
YYW-1600A	30-1600	φ1800	100-2500	φ15-240	300-2500 Neutral speed regulating	≤1	≥90	11
YYW-3000S	50-3000	φ2000	300-3000	φ40-300	160-1500 Neutral speed regulating	≤1	≥90	7.5
YYW-3000A	100-3000	φ2400	300-3000	φ40-300	180-1500 Neutral speed regulating	≤1	≥90	11
YYW-5000A	300-5000	φ2400/ 2000	340-2960	φ40-180 180-300	180-1500 Neutral speed regulating	≤1	≥90	18.5
YYW-10000A	300-10000	φ2400/ 3200	240-5100	φ50-200 200-400	200-1200 Neutral speed regulating	≤1	≥90	45
YYW-20000A	500-20000	φ2400/ 3200	300-5100	φ50-200 200-400	200-1200 Neutral speed regulating	≤1	≥90	55
